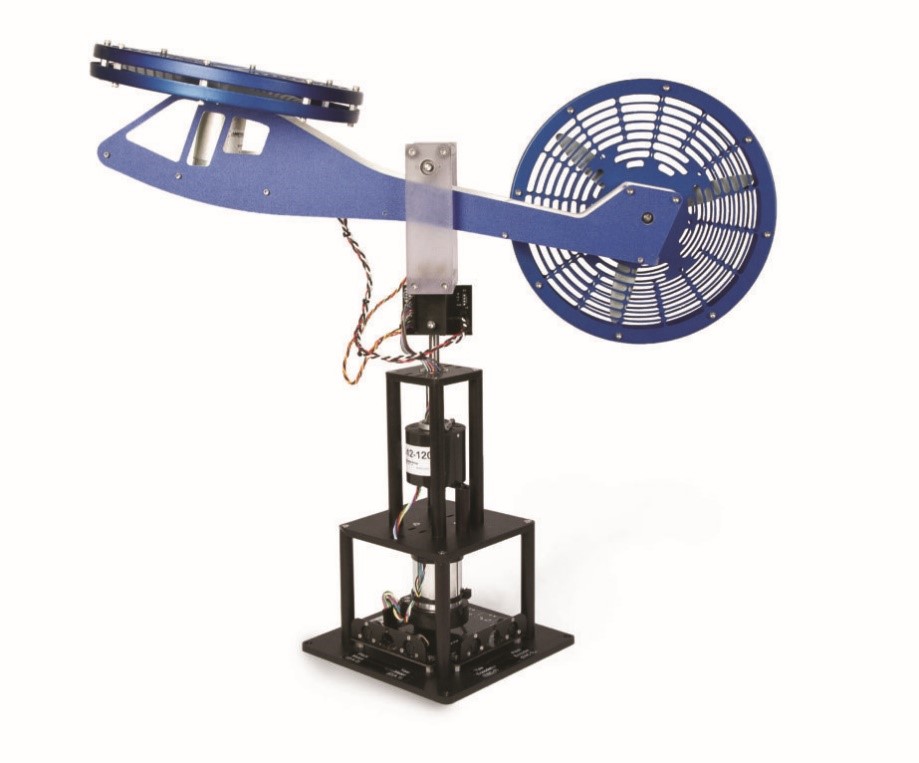

LT-MC305 Dual Rotor Aerospace
Labtronic offers the Aero-vehicle Trainer, a benchtop educational unit designed to introduce trainees to fundamental control and aerospace concepts. The trainer allows operators to safely control the dynamic response of the system, powered by two rotors. It can simulate various aeronautical systems, including half-quadrotor, 1-DOF, and 2-DOF helicopters. The unit features interchangeable propellers, user-adjustable thrust vectors, and the ability to lock axes independently, providing a versatile platform for hands-on learning. This trainer offers practical experience in aerospace control applications, making it ideal for exploring real-world flight dynamics and control challenges.
Learning Objectives:
- Learning about signal conditioning and sensor interfaces.
- Enhancing control methods such as:
- Speed and position control
- Control design adhering to specifications
- Control and modeling in state space
- Familiarization with experimental system identification.
- Introduction to theoretical system modeling.
- Introduction to model validation and parameter estimation.
- Gaining knowledge in scheduling and command for aerospace systems.
- Improving the LQR controller.
- Learning how to design Kalman filters with LQG controllers.
- Compatible with MATLAB and Simulnik.
- Introduces fundamentals of control and aerospace concepts with applications.
- Includes a built-in data acquisition device, integrated amplifier, and current sensor.
- Optional QFLEX 2 interface panel for additional connectivity.
- Connectivity options for PCs, embedded computers, and microcontrollers.
- Features one Inertial Measurement Unit (IMU) and four high-resolution optical encoders for measuring and regulating attitude in pitch and yaw axes.
- Slip ring wiring enables continuous 360° yaw rotation.
- Trainer components include:
- DC motor with encoder
- Controller
- Adjustable propeller angle
- IMU
- Accelerometer
- Gyroscope
- Yaw encoder
- Pitch encoder
