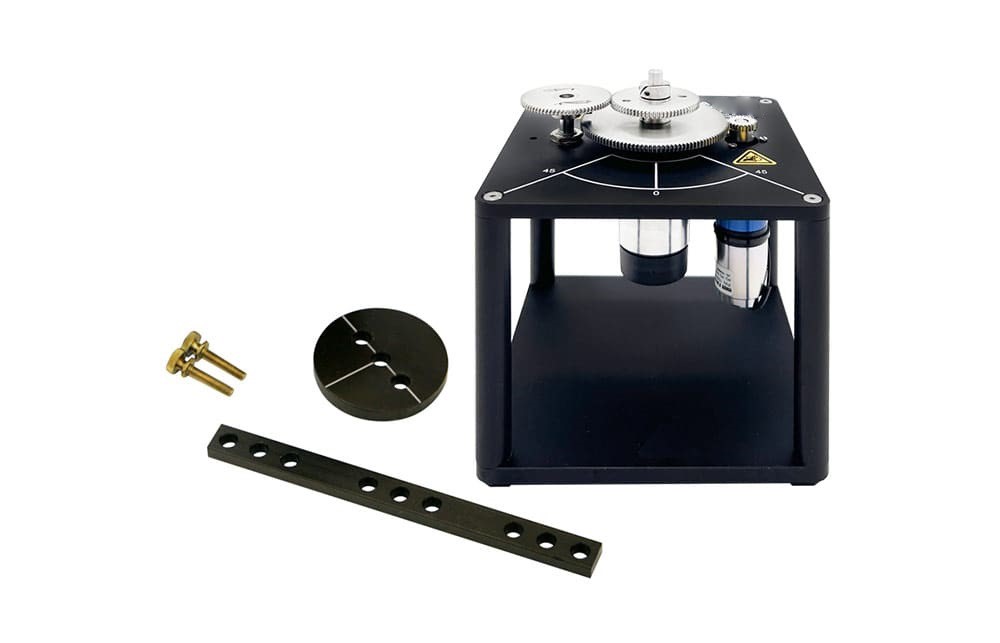

LT-MC301 Rotary Servo Base Unit

Labtronic offers the rotary servo base unit as the essential component for rotary control experiments. Designed with a user-friendly interface, it provides an excellent introduction to fundamental control theories and concepts. The unit can be used independently for various experiments or combined with additional modules to explore a broader range of control principles. This versatile setup bridges theoretical learning with real-world relevance, making it ideal for comprehensive control systems training.

Learning Objectives:

Familiarization with geared servomechanism systems.
Strengthening fundamental principles of basic control.
Position Control of a Rotary Servo System
Speed Control and Dynamic Response Analysis
Load Torque Measurement and Compensation
System Identification and Model Validation

Designed for rotary control experiments.
Components include:
- DC motor
- Pinion gear
- Gearbox
- Load shaft
- Optical encoder (or potentiometer)
Position of the load shaft can be determined using a potentiometer or high-resolution optical encoder.
Encoder can also calculate motor speed.
Equipped with gears and varying loads.
Optional slip ring enables continuous measurement from instrumented modules.
Robust structure, easy to connect to additional modules for expanded experiments.

Technical Data

Servo motor specifications:

Power: 750 Watts
Rated speed: 3000 RPM
